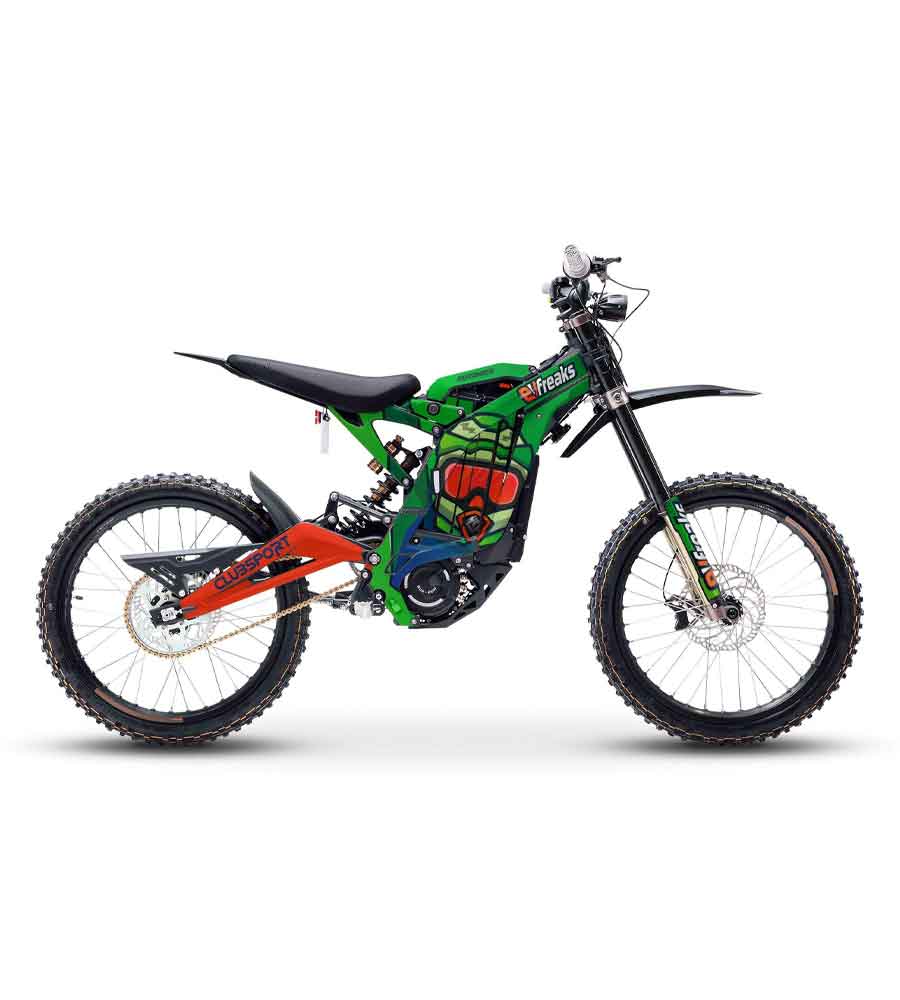

NEWEST SUR RON LIGHT BEE X - 8.5kW

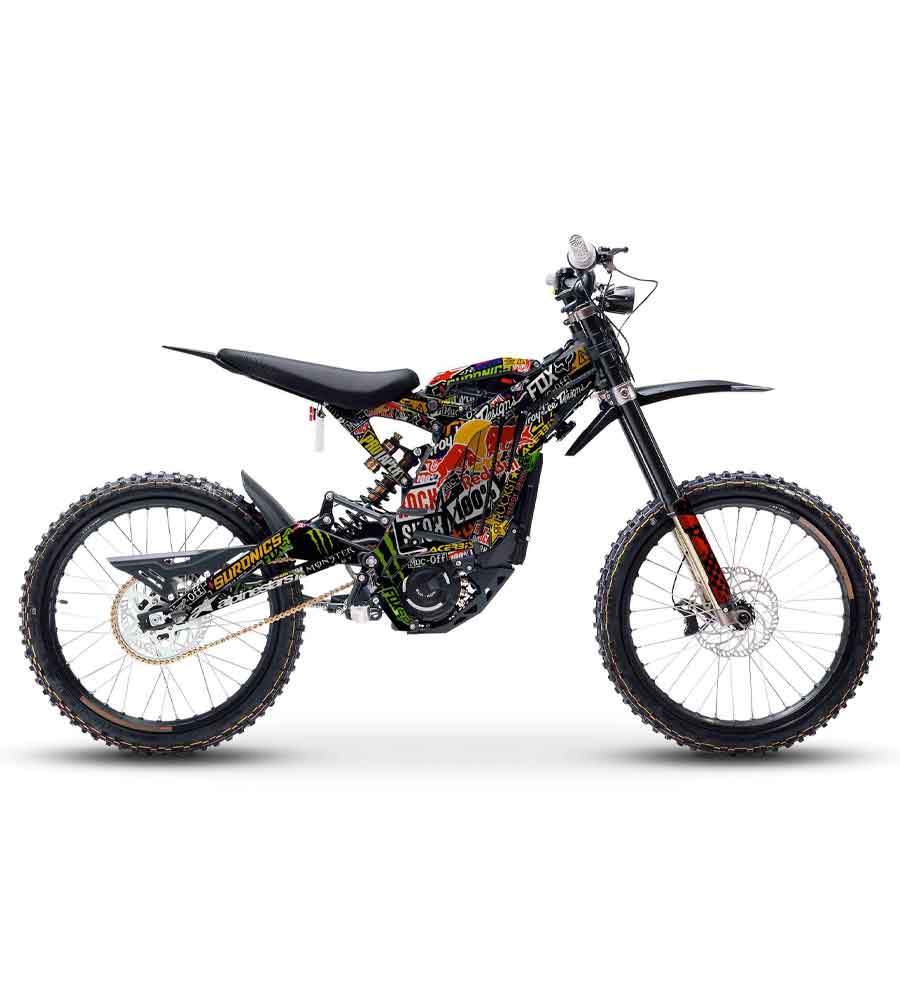

Can be sold with OEM sticker kit or custom graphics kit installed at your choice - extra parts available as well.
The Electric powered SUR-RON LB X Series Dual Sport E Dirt Bike promises advanced fun on all terrain. 60V and more than 8W of peak power from a removal Panasonic Lithium-ion battery pack. Forged lightweight alloy frame combined with hi-spec components, total weight just 47kg. 4 Piston Hydraulic Disc Brakes Front and Rear. LCD dash with USB charger point. Aimed at youth to adult, with a climbing ability of over 45° it offers hours of near-silent fun with a range of 20 to 60 miles per charge, depending on model. Top speed 45 mph +, Fast Re-Charge 2.5 to 3.5 hours. Full UK technical, spares and marketing support.

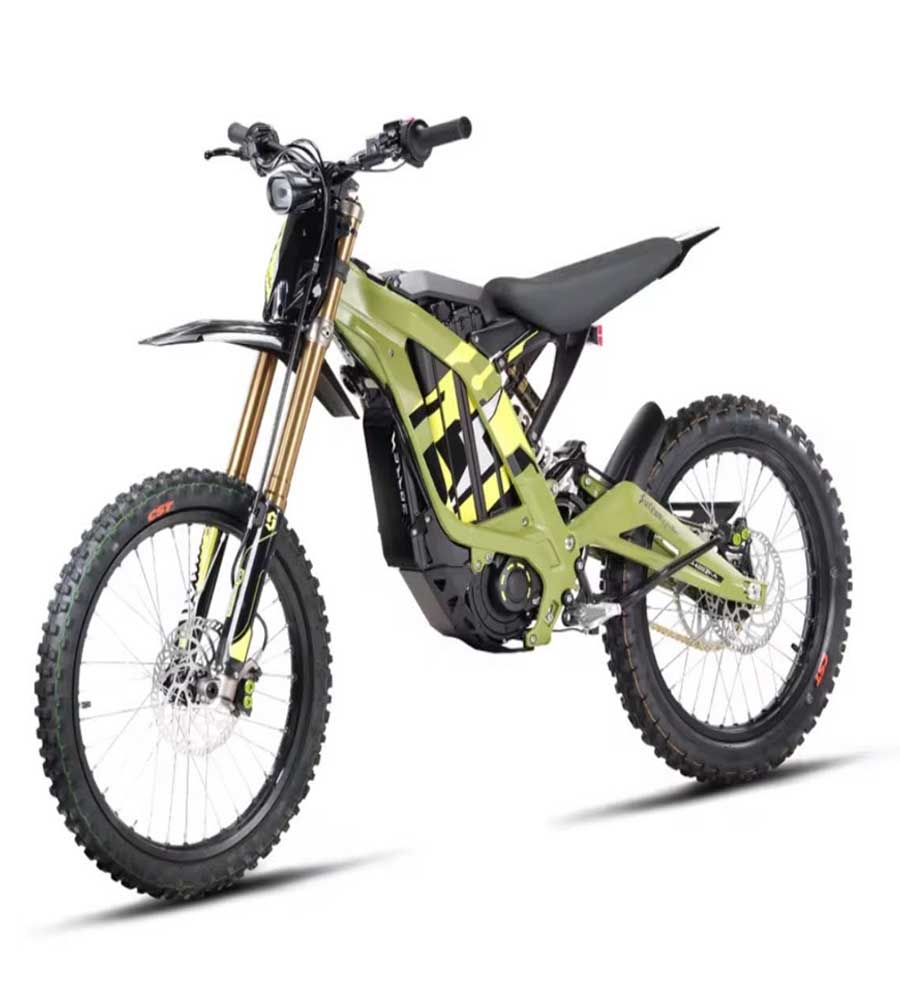

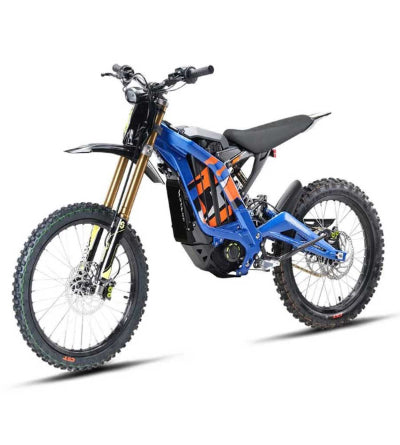

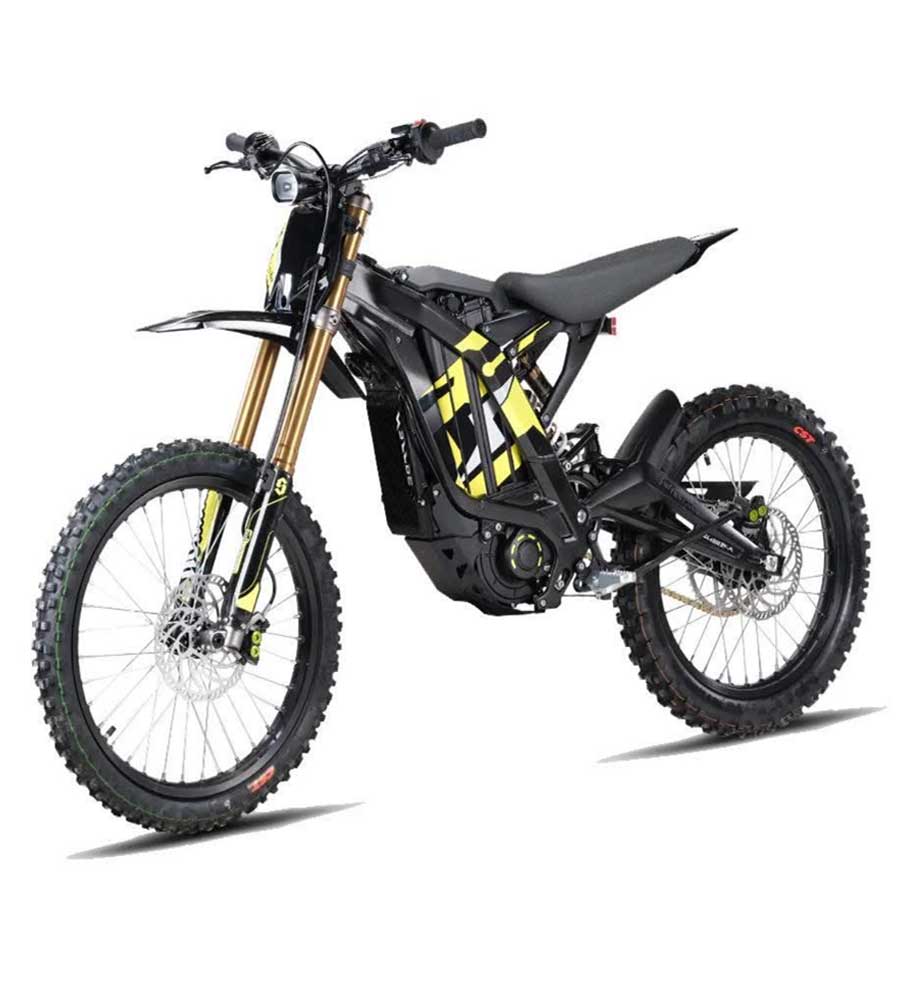

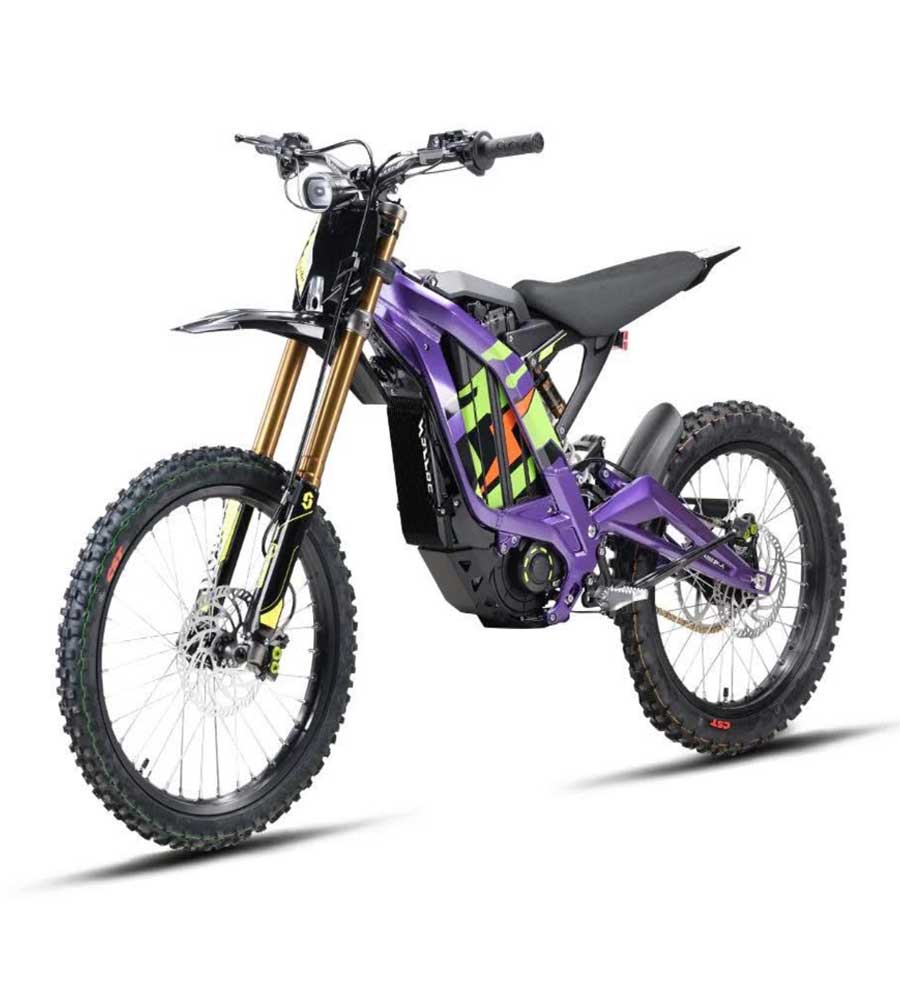

All colors of the LB X-Series Dirt Bike come complete with a front fender. *In the additional images of the black Sur-Ron LBX, the front fender shown comes as standard - the rear hugger and chain guard are optional.*
The bike comes equipped with a factory-fitted GPS tracker - features include real-time tracking, theft alerts, geo-fence security zones & the ability to track your Sur-Ron bike from your phone and/or computer.*
New updates on the X Series Off-Road Version for 2020 Models Onwards:
Sine wave controller delivers smoother power with more torque with ReGen for improved range.
DNM, RST, or Fastace Suspension
Improved riding position: wider thicker seat combined with wider higher bars.
Heavier duty Gold O Ring chain for lower maintenance & reduced noise.
Updated brakes: 4 pot titanium finish calipers now with sintered pads with improved heat dissipation and braking power.
Pro handlebar grips in grey.
Specifications
| MOTOR | |
|---|---|
| Motor Type | PMSM |
| Mounting Position | Mid |
| Weight / Motor External Diameter | 7.0kg / 180mm |
| Motor Axial Length | 130mm |
| Peak Efficiency | 95.60% |
| Cooling Method | Air-Cooled |
| CONTROLLER | |
| Controller Type | X Version Sine Wave |
| Dimensions | 240mm x 110mm x 50mm |
| Peak Efficiency | 98.50% |
| Power Modes | Eco and Sport |
| MOTOR POWER SYSTEM | |
| Rated Voltage | 60V (DC) |
| Rated Power / Peak Power | 3000W / 6000W |
| Rated Torque / Peak Torque | 10.2Nm / 39.00Nm |
| Motor Shaft Output Torque @ 1000RPM | 35.40Nm |
| Rated Rotation Speed | 4300rpm |
| Peak Efficiency | 97.8% |
| Range of Efficiency (≥80) | 1.4Nm - 21.5Nm |
| CERTIFICATES | |
| Road Legal | No |
| TRANSMISSION | |
| Gear Ratio | 1: 7.6 |
| Transmission | Primary Belt & 420 Drive Chain |
| Belt Brand & Model | German Continental Brand, 8M CXA |
| ELECTRICAL COMPONENTS | |
| Horn | European Standard Horn |
| Battery | 60V 34A Lithium Battery with 176 Panasonic Cells |
| Battery Life Time | 500 Cycles (and then the capacity reduces step by step) |
| Battery Charge Level | Integrated Battery LCD Display |
| Charger | 10A |
| Charging Time | 2.5-3.5 Hours |
| USB Connection | USB-2.1 A Single Socket |
| Speedometer | LCD Digital Speedometer |
| LED Headlight & Rear Light | Yes |
| CRATE DATA | |
| Crate Dimension | 1650mm x 850mm x 310mm |
| Gross Weight | 70kg |
| To Assemble from Crate | Handlebars, foot rests & insert front wheel |
| WARRANTY | |
| Battery / Chassis / Swing Arm | 18 Months (or up to 20,000 miles on Battery whichever sooner) |
| Please be aware that any work on the high voltage systems MUST be carried out by a qualified dealer carrying hybrid electric vehicle certification. | |
| Other Components | 12 Months, excluding service items and subject to servicing NB Warranty work is carried out free of charge subject to proof of correct service history.Surron warranty is a return to dealer cover and does not include transportation costs. We can arrange collection and delivery, but the cost must be paid by the owner, prices available upon request. |
| VEHICLE | |
| Chassis - Swing Arm Material | No. 6061 T4 & T6 Aluminium Alloy |
| Chassis Construction Method | Forged by 6000 Tons of Pressure |
| Chassis Surface & Colour Processing | Anodic Oxidation |
| Front Suspension | DNM, RST or Fastace |
| Rear Shock Absorber | Adj DNM, RST or Fastace Shock with TR Suspension Link System |
| Wheel Type & Size | Spoke Wheels, Front/Rear 19 x 1.4 Alloy Hubs |
| Tire Size | Front/Rear 70/100-19 CST |
| Top Speed | 47 MPH 73KMH Varies depending upon load and gearing |
| Max Range | 60 Miles @ 20 MPH average speed depending upon terrain |
| Net Weight | 47kg plus battery |
| Max Load | 100kg (15.75 Stone) |
| Max Climb | 45° |
| Rear Sprocket | 48T |
| Side Stand | Yes with kill switch |
| Vehicle Dimensions | 1870mm x 780mm x 1040mm |
| Min. Ground Clearance | 270mm |
| Wheelbase | 1260mm |
| Seat Height | 84 to 88cm |
